| Object: | CA on a homogeneous digraph |
| Topology: | Completely homogeneous |
| Dimension: | 3D |
| Structure: | Cube with "holes" |
| States: | 2 |
| Neighbors: | 2 |
| Rule: | C[t+1] = C1[t] xor C2[t] |
| Initial Config.: | Single non-blank cell, coord. (0,0,0) |
| In-degree: | 2 |
| Out-degree: | 2 |
| Global map: | Reversible |
| Behaviour: | Non-Replicative |
| Author: | Joel Dobrzelewski (1997) {created with CABuilder} |
 500gen.xls
|
Microsoft Excel worksheet containing all of the data and graphs for the 500 generation run. |
 500gen.csv
|
Simple text file (comma separated values) containing the generation, population, combinations, volume, and density for these first 500 generations. |
 density.gif |
ZigZag density. |
|

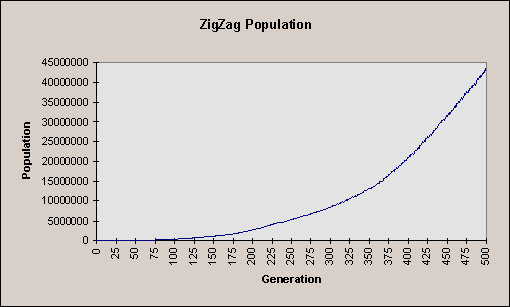

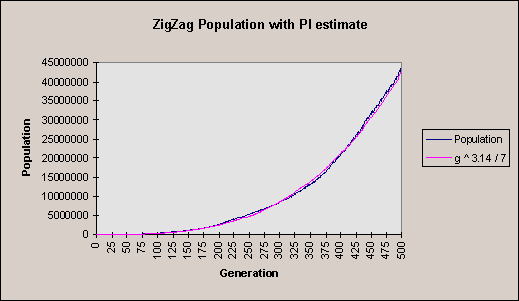

ZigZag populations. Note: a good approximation of the population appears to be the generation number raised to the value of PI (to two decimal places) over seven ( g ^ 3.14 / 7 ). I can't explain this; it's probably just a peculiar coincidence. View a graph here: pop-pi.gif |
|
Number of inaccesible configurations of a 24 cell region. |
 24.wrl96.wrl |
24 and 96 cells of the ZigZag lattice VRML models by Joel Dobrzelewski (1998) |
